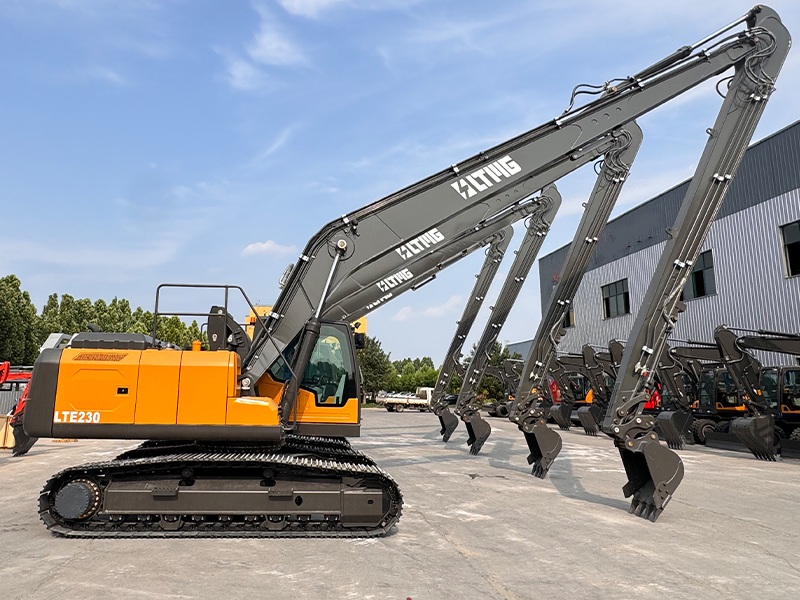

This 23-ton excavator is powered by a 124kW Cummins QSB7 engine, delivering robust performance while maintaining full EPA emission compliance. Equipped with a 1.1 $m^3$ bucket, the machine utilizes advanced double-pump combined flow technology. This system optimizes hydraulic distribution to the boom, arm, and bucket cylinders, significantly increasing cycle speeds and overall operational efficiency.
Modell :
LTE230Betriebsgewicht :
23000kgEimerkapazität :
1.1m³ODM/OEM :
SUPPORT
Customer Feedback Video
23 Ton Excavator Technical Parameters
| Performance Parameters | Unit | LTE230 |
| Operating Weight | Kg | 23000 |
| Engine Model | Cummins QSB7 | |
| Rated Power | Kw | 124KW/2050rpm |
| Bucket Capacity | m³ | 1.1 |
| Swing Speed | rpm | 0-13 |
| Traveling Speed | km/h | 3.8-4.2 |
| Gradeability | ° | 30° |
| Hydraulic System | ||
| Hydraulic system working pressure | Mpa | 34 |
| Hydraulic Pump | PNM | |
| Hydraulic Valve | Parker | |
| Swing Motor | Strong(Sunjin) | |
| Traveling Motor | Doosan | |
| Operating Range | ||
| Max. Digging Radius | mm | 9936 |
| Max. Digging Depth | mm | 6550 |
| Max. Digging Height | mm | 9680 |
| Max. Dumping Height | mm | 6730 |
| Distance from swing center to tail | mm | 2880 |
| Overall Dimensions | ||
| Overall Length | mm | 9565 |
| Overall Width | mm | 2990 |
| Overall Height | mm | 3000 |
| Track Width | mm | 600 |
| Track Height | mm | 950 |
With technological innovation, our product configuration and parameters will continue to change without notice; If there is any doubt, the specific confirmation of our international trade sales shall prevail.
Optional Attachments & Shipping Plan
LTMG provides customers with various optional attachments, including but not limited to buckets, rippers, rakers, auger drills, and grippers, which are meticulously designed to cater to diverse and distinct requirements across various working sites.


FAQ about 23 Ton Excavator
1. What payment terms can we accept?
T/T; L/C; D/P
2. What Certificates do we have?
All products meet the ISO9001 Quality System and have acquired a CE certificate. EPA approval will be available if needed.
3. How about our delivery time?
It usually will take 30 days-45 days after receiving your deposit.
4. Can we provide OEM service?
LTMG Industrial can provide customized products according to customers' requirements, both OEM and ODM are acceptable.
5. What is LTMG's policy for responding to customer questions and concerns?
LTMG responds to any questions within 24 hours and provides free wearing parts during the warranty period. If you are not satisfied with any details of our company's sales and service, please feel free to contact us and we will do our best to solve your problems in time.
