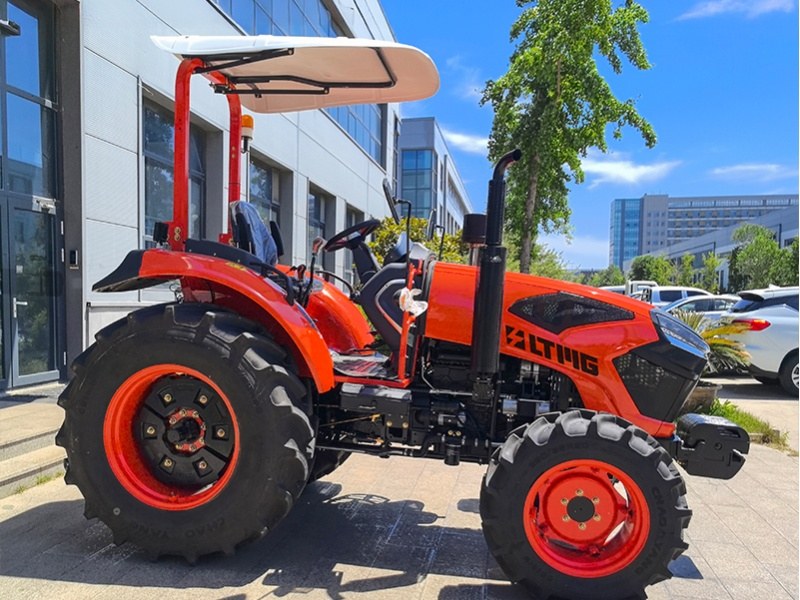

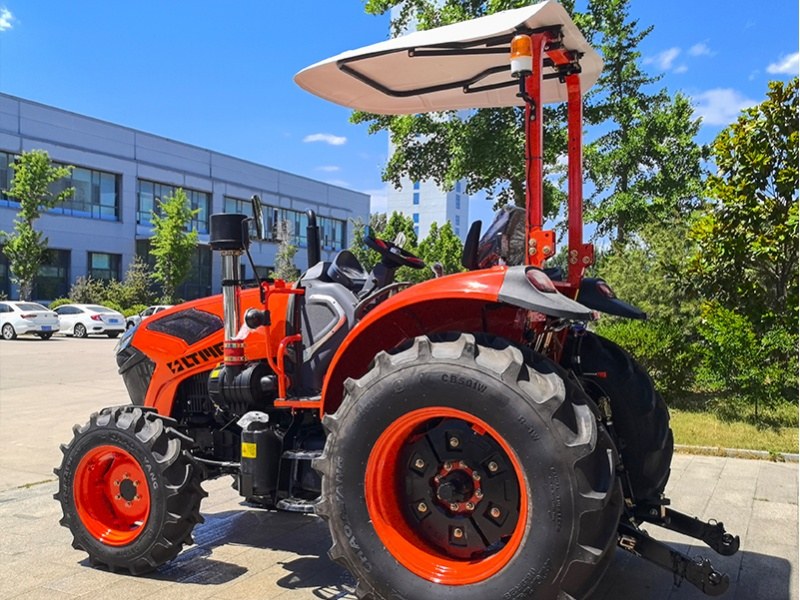

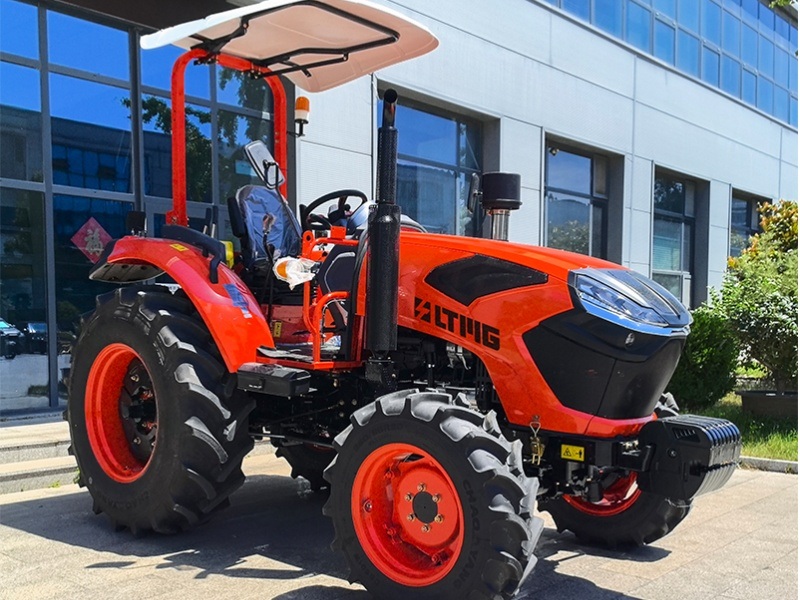

The LTB804 tractor's reinforced chassis with a 12F+12R shuttle shifter delivers smooth control, durability, and versatile operation. Excellent stability, comfortable driving, and an optional roll cage, sunshade, or A/C cab make it ready for tough field conditions.
Modell :
LTB804Motor :
Laidong China Emission Stage IILeistung :
80HPODM/OEM :
Support
* Reinforced chassis for long-lasting durability and multi-purpose farm use.
* 12F+12R shuttle shifter with a dual-acting clutch ensures smooth, efficient gear changes.
* Stable, comfortable performance ideal for demanding field conditions.
* Optional roll cage, sunshade, and A/C cab available for enhanced protection and comfort.
LTB804 80HP Agricultural Tractor 4WD Technical Parameters
|
Model |
LTB804 |
|
Tractor Power |
80hp |
|
Chassis Type |
TB |
|
Drive method |
4WD |
|
Overall dimension（L*W*H）mm |
4050×1795×2630 |
|
Wheel tread (mm) |
1300-1400 |
|
Wheel base (mm) |
2110 |
|
Min Ground clearance (mm) |
390 |
|
Min service weight (kgs) |
3000 |
|
Diese engine |
Laidong China Emission Stage II |
|
Type |
inline, direct injection, water-cooled |
|
Intake method |
turbocharged |
|
Engine power |
58.8kW/2400rpm |
|
Fuel |
diesel |
|
Fuel tank capacity (L) |
70L |
|
Suspension type |
three-point linkage, CAT II |
|
Hydraulic output |
Two groups of hydraulic; Options: 3 groups |
|
Max traction power |
≥18kN |
|
Max lifting power |
≥15kN |
|
Rear PTO speed |
540/1000rpm |
|
PTO splines |
6 |
|
Steering |
hydraulic steering |
|
Transmission |
gearshift 12F+12R |
|
Clutch |
Dry type, double-acting, synchronizer shifting |
|
Brake |
oil-immersed |
|
Tire size |
Optional 9.5-24/14.9-30; 8.3-24/16.9-30;12.4-24 18.4-30; radial tire 280/85R20,380/85R30 |
|
Theoretical speed |
Forward: 2.46-32.73km/h; Reverse: 2.15-28.69km/h |
|
Options |
ROP, canopy, cabin with air conditioner, air compressor |
With technological innovation, our product configuration and parameters will continue to change without notice; if there is any doubt, the specific confirmation of our international trade sales shall prevail.

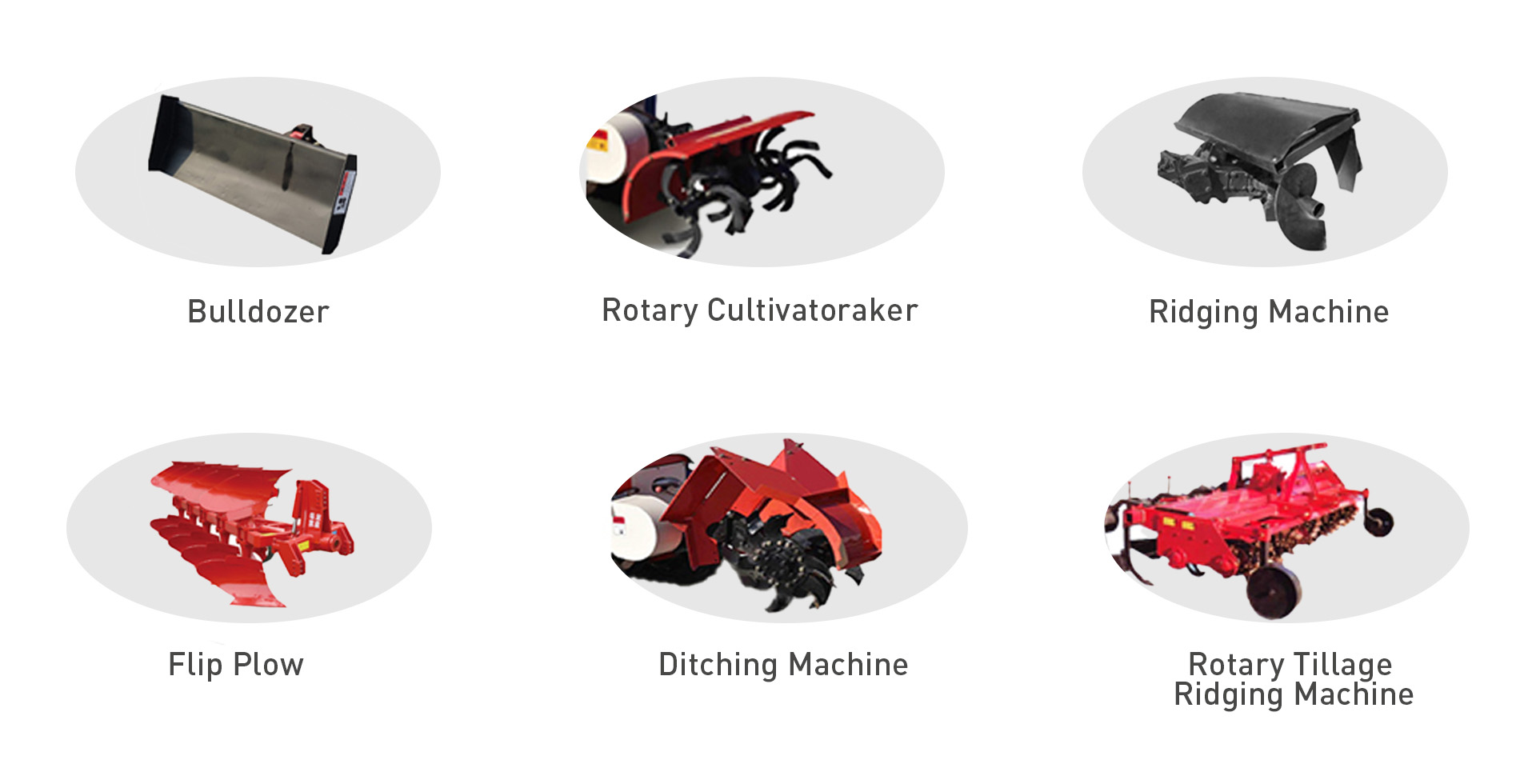

Tractor with Versatile Attachments
The LTB804 is designed to work seamlessly with a wide range of farm implements, allowing you to handle plowing, tilling, hauling, and land preparation with a single machine. Its strong power, stable performance, and universal linkage system ensure easy attachment changes and high efficiency across different agricultural tasks.

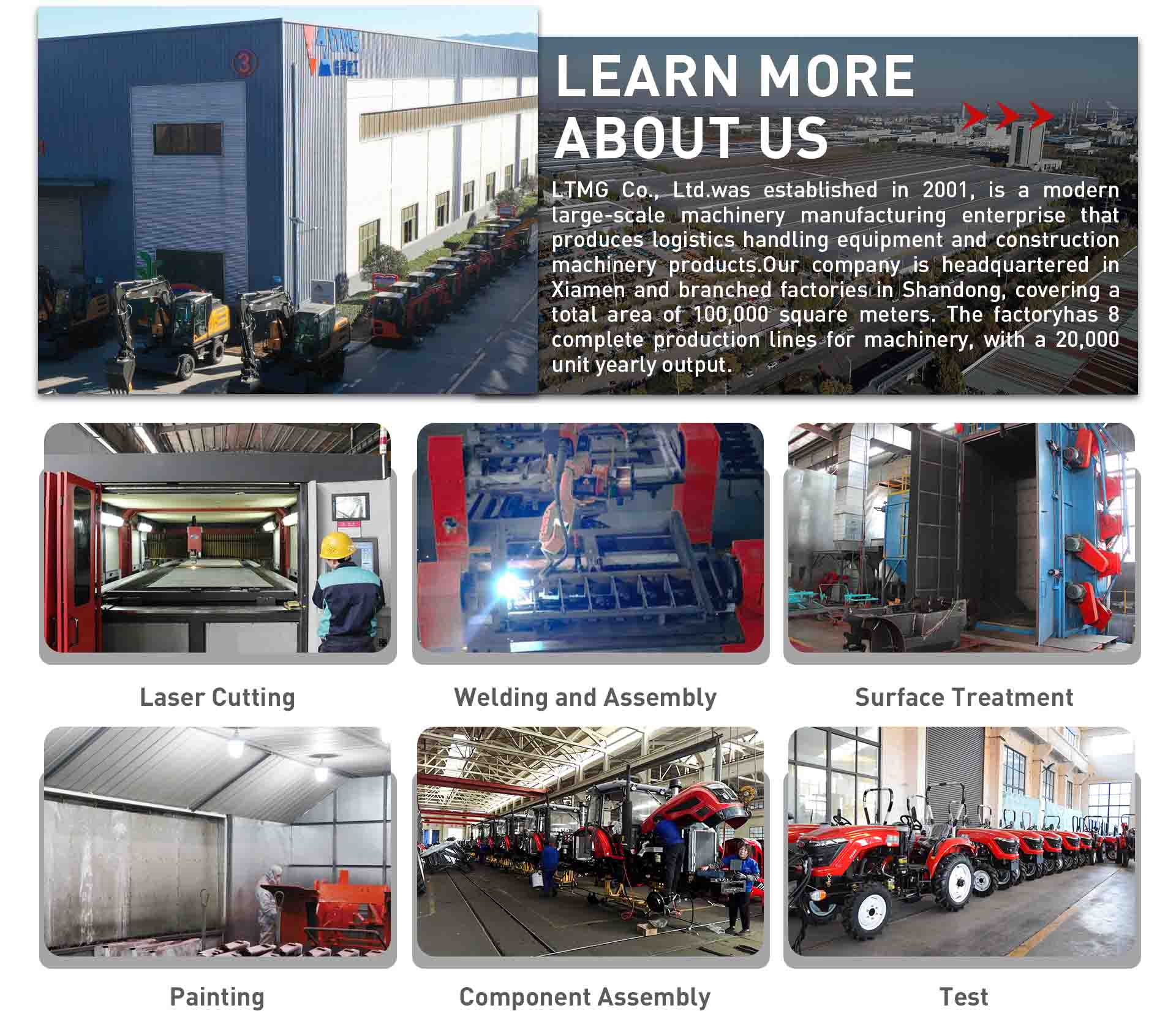

Trusted Production and Shipping
FAQ
Q： What is the engine power range of your tractors?
A: Our tractors offer engine power ranging from 25HP to 220HP to meet various agricultural and commercial needs.
Q: Are your tractors 2WD or 4WD?
A: We provide both 2WD and 4WD tractors, allowing you to choose based on terrain and operational requirements.
Q: Do you provide tractors with air-conditioned or enclosed cabs?
A: Yes, optional features include air-conditioned or enclosed cabs, roll cages, and sunshades for enhanced operator comfort.
