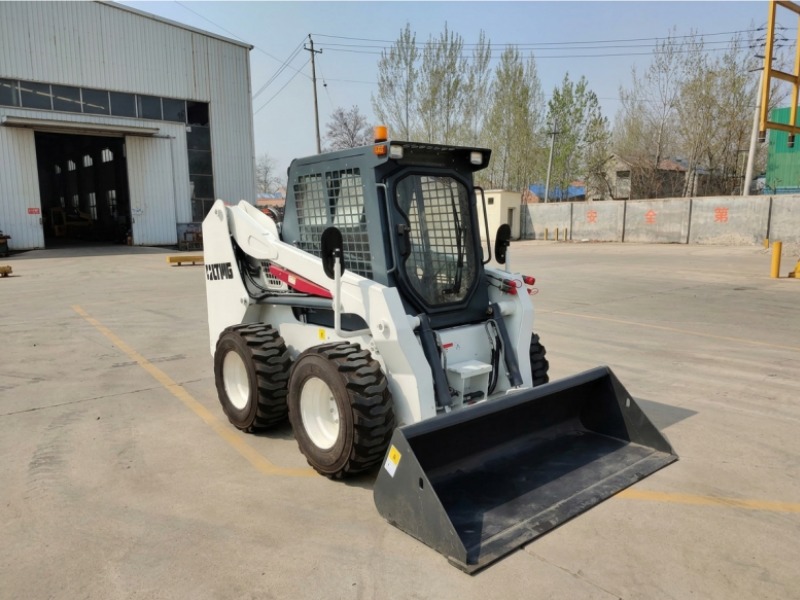

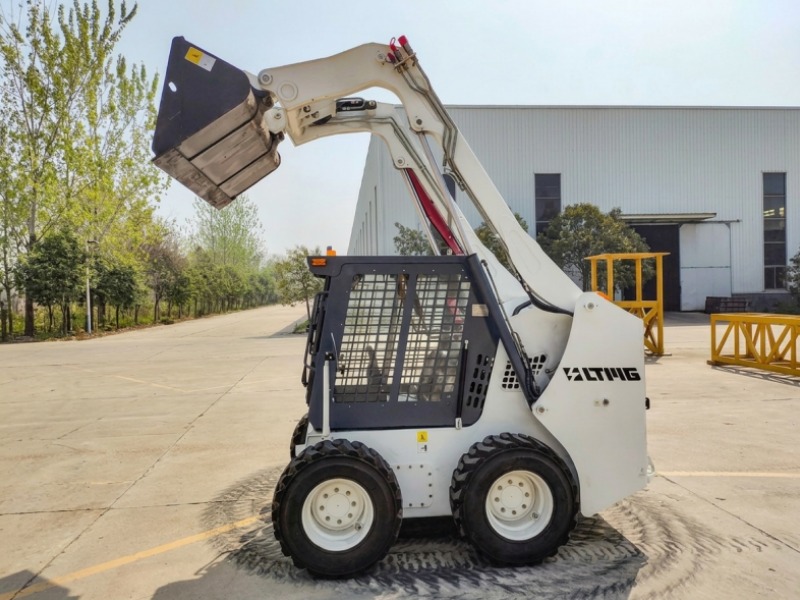

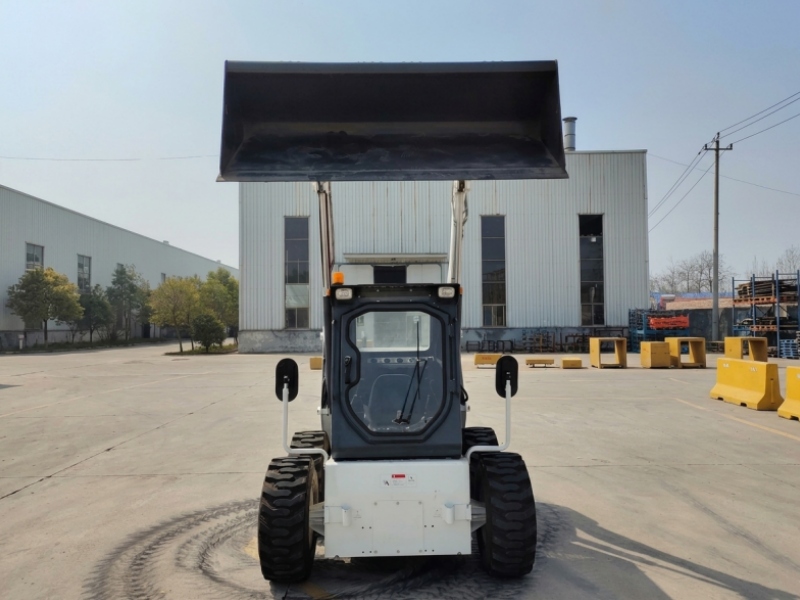

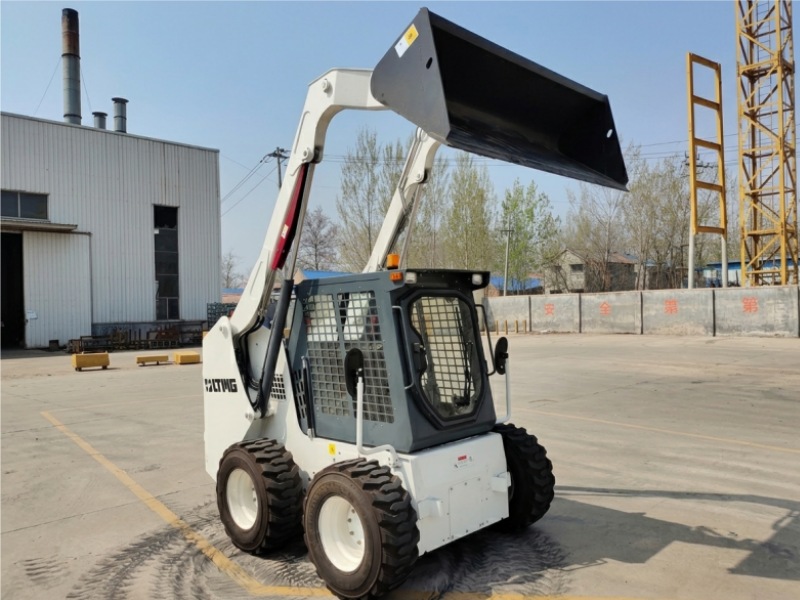

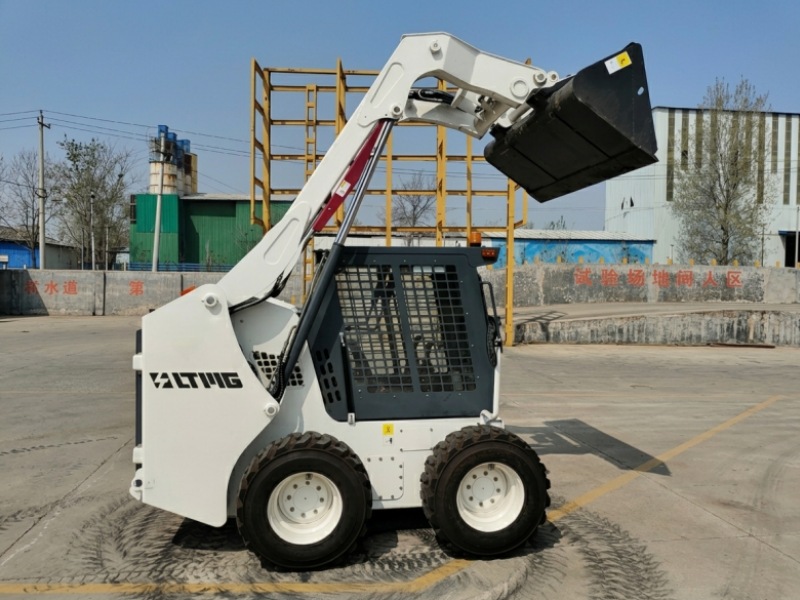

This compact skid steer loader features a 1200kg rated load and 0.53m³ bucket capacity, delivering efficient loading and handling performance. Compatible with various skid steer loader attachments, it is widely used in construction, agriculture, landscaping, and material handling applications.
Modell :
LT100Ladekapazität :
1200kgBetriebsgewicht :
3970kgEimerkapazität :
0.53m³
LT100 Skid Steer Loader Technical Specifications
| Model | LT75 |
|
Engine Model |
QUANCHAI4C6-88C33 |
|
Rated Power |
65KW |
|
Rated Speed |
2200rpm |
|
Max. Speed |
11.2/22.4km/h |
|
Tire |
12-16.5 |
|
Operating Load |
1200kg |
|
Max. Loading |
2400kg |
|
Lifting Type |
Radial |
|
Total Cycling Time |
9s |
|
Bucket Capacity |
0.53m³ |
|
Pressure of Working System |
235bar |
|
Rated Flux |
76L/min |
|
High Flow Flux |
140L/min |
|
Fuel Tank Capacity |
106L |
|
Self-weight With Bucket |
3970kg |
|
Control Bucket |
Manual/Joysticke |
|
Overall Operating Height |
4143mm |
|
Height To Bucket Hinge Pin |
3205mm |
|
Height To Top of Cab |
2065mm |
|
Height To Bottom of Level Bucket |
3010mm |
|
Overall Length Without Bucket |
2857mm |
|
Overall Length With Bucket |
3649mm |
|
Dumping Height |
2460mm |
|
Dumping Reach |
590mm |
|
Rollback of Bucket On Ground |
30 |
|
Ground Clearance |
195mm |
|
Angle of Departure |
26 |
|
Front Turning Radius without Bucket |
1338mm |
|
Front Turning Radius |
2174mm |
|
Rear Turning Radius |
1746mm |
|
Width (Standard Tire) |
1798mm |
|
Bucket Width |
1910mm |
With technological innovation our product configuration and parameters will continue to change without notice.
About LTMG

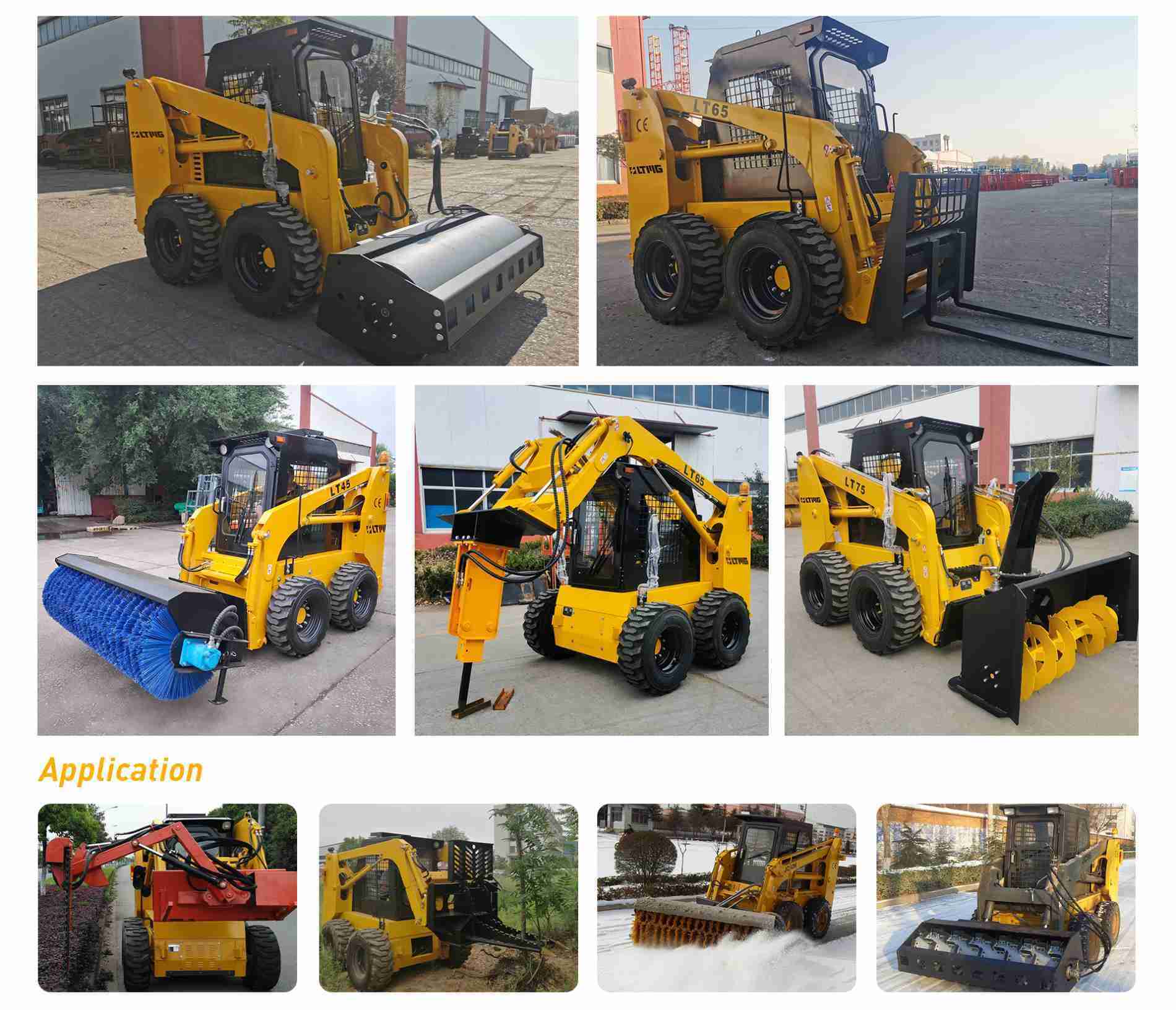

Skid Steer Loader Attachments
Compatible with multiple skid steer attachments for versatile applications.
Skid Steer Loader Reviews
LTMG is trusted by customers worldwide for reliable performance, durability, and outstanding versatility in real job site applications.
FAQs
What is a skid steer loader?
A skid steer loader is a compact and highly maneuverable machine designed for loading, lifting, digging, and material handling. It can work with various skid steer loader attachments for different applications.
What attachments can be used on the LT100 skid steer?
The LT100 supports multiple steer loader attachments such as buckets, pallet forks, grapples, hydraulic breakers, augers, trenchers, and sweepers for construction and agricultural work.
What affects skid steer pricing?
Skid steer pricing usually depends on lifting capacity, engine power, hydraulic system, attachment compatibility, and cab configuration. The LT100 offers a balance of performance, durability, and cost efficiency.
