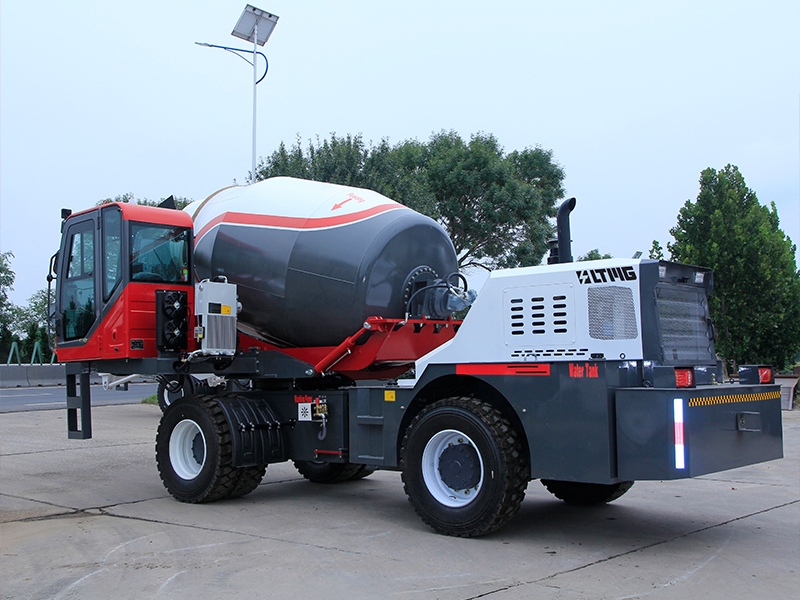

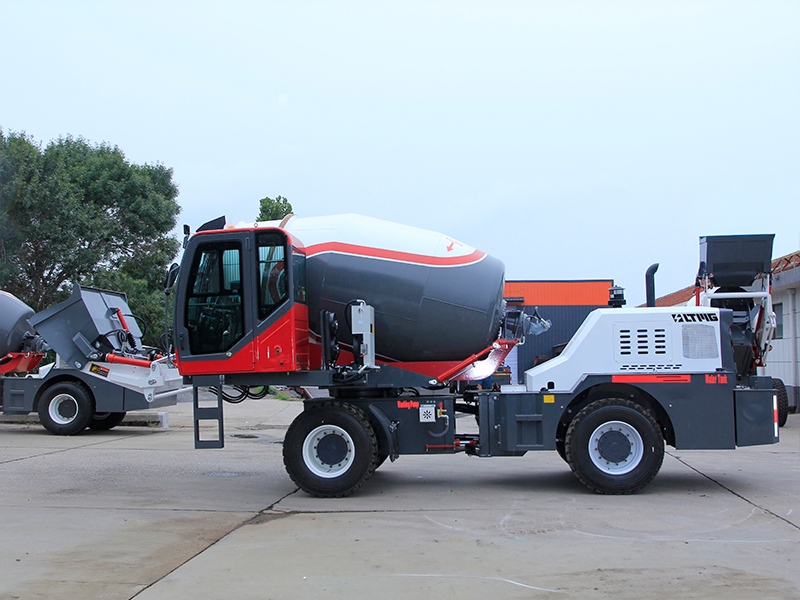

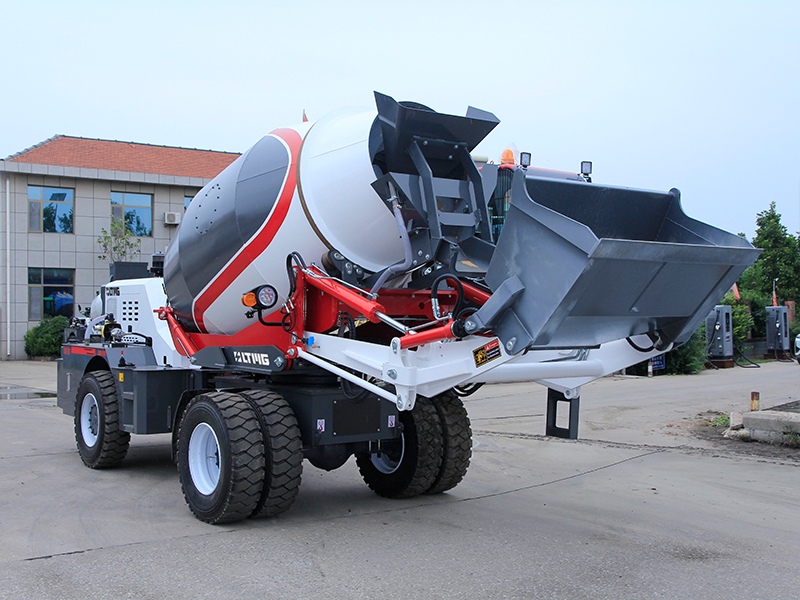

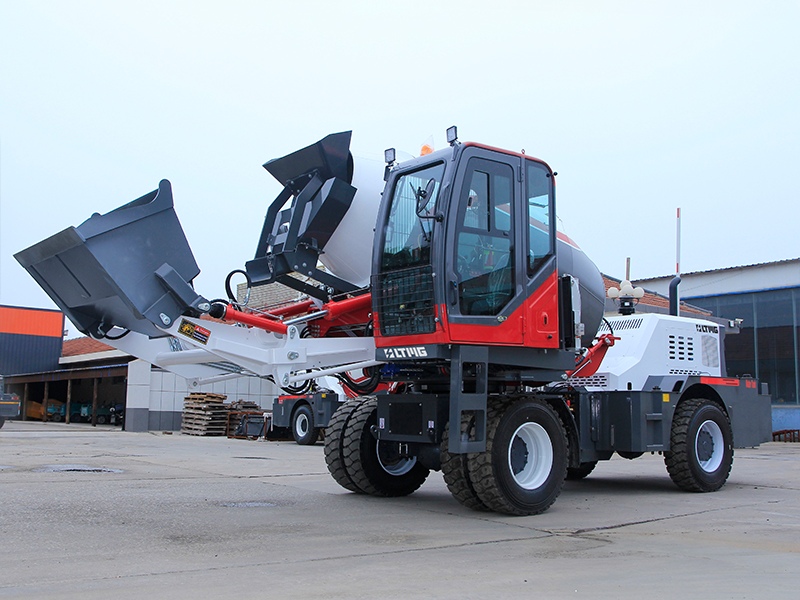

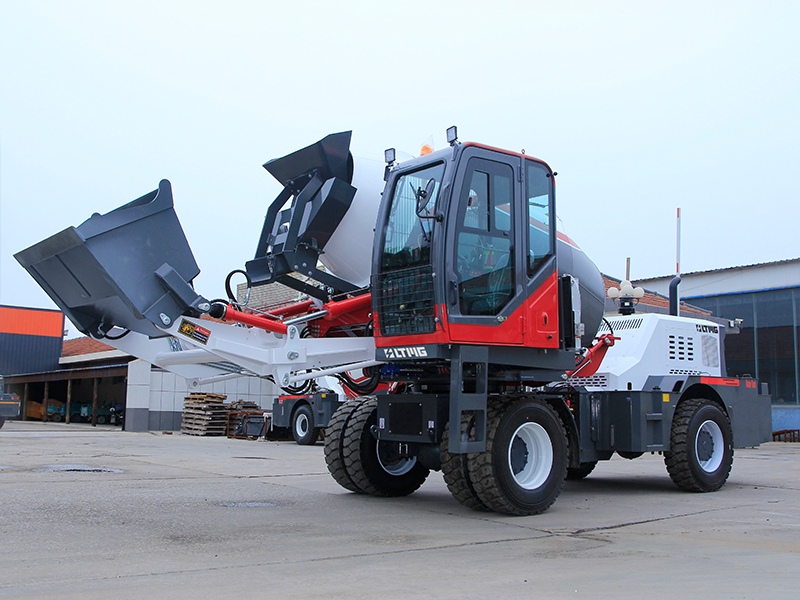

The 5m³ Concrete Mixer Truck combines loading, mixing, transporting, and discharging for efficient on-site concrete production. With powerful performance, flexible operation, and enhanced driving comfort, it is ideal for construction projects, road works, foundations, and demanding sites.
Modell :
LTM50Gewicht :
12500 KGLänge Breite Höhe :
7360 × 3100 × 4640 (Lifting arm) mm
The Features Of The Self Loading Concrete Mixer Truck
1. Efficient Concrete Production & Integrated Operation: The integrated loading, mixing, transporting, and discharging system streamlines on-site concrete production, reducing material handling and improving overall construction efficiency and productivity.
2. Powerful Performance & Heavy-Duty Design: The powerful diesel engine, heavy-duty drivetrain, and articulated frame provide strong traction and stable operation, enabling the mixer to perform reliably on rough terrain and demanding construction sites.
3. Flexible Operation & Easy Concrete Discharging: The synchronous rotation of the mixing drum and driver's cab provides greater flexibility for positioning and concrete discharging. The hydraulic system and pilot-operated controls ensure smooth, responsive, and convenient operation.
4. Comfortable Driving & Enhanced Visibility: The ergonomic cab is equipped with a shock-absorbing seat, digital dashboard, front and rear cameras, display, LED lighting, and a liftable front windshield, creating a more comfortable and convenient operating environment.
The Specification Of The Self Loading Concrete Mixer Truck
| Parameter | Unit | LTM50 |
| Vehicle Size (L × W × H) | mm | 7360 × 3100 × 4640 (Lifting arm); 8580 × 3100 × 3560 (Drop arm) |
| Wheelbase | mm | 3200 |
| Track Width | mm | 1845 |
| Overall Weight | kg | 12500 |
| Engine | / | YC6J125Z-T20 |
| Power | kW | 92 |
| Gearbox | / | 315 Separated |
| Drive Axle | / | Front axle 30S wet axle / Rear axle 30 |
| Tyre | / | 16/70-R22.5 double tyre |
| Bucket Capacity | m³ | 0.7 |
| Stirring Capacity | m³ | 5 |
| Reduction Ratio | / | 0.113194444 |
| Drum Rotation Speed | rpm | ≥15 |
| Reducer | / | HL6F-B2700 |
| Running Speed | km/h | 35 |
| Shaft Number Traction Type | / | 4×4 |
| Water Tank Capacity | L | 1070 |
| Diesel Tank Capacity | L | 180 |
| Hydraulic Tank Capacity | L | 180+35 |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail;
Ordering and Process for Concrete Mixer
FAQ
A: The hourly output of a self-loading concrete mixer depends on its complete working cycle rather than drum capacity alone. Loading materials, adding water and cement, mixing, traveling to the pouring point, and discharging all affect production efficiency. Centralized material storage, short travel distances, good site organization, and an experienced operator can increase output, while scattered materials, long transportation distances, or poor road conditions can reduce it. For an accurate estimate, consider the mixer capacity together with material locations, travel distance, discharge distance, and actual jobsite conditions.
Q: Can a Self-Loading Concrete Mixer Produce Concrete with an Accurate Mix Ratio?
A: Yes. A self-loading concrete mixer can follow a specified concrete mix ratio when equipped with a suitable weighing system and operated correctly. Sand and aggregates are generally loaded with the front bucket, water is controlled through the onboard water tank and metering system, and cement can be added in bags, bulk bags, or other appropriate forms. For precise mix proportions, an electronic weighing system and water metering function are recommended, with regular calibration to maintain accuracy. When following a laboratory-designed mix, material quantities should be measured accurately instead of being estimated by bucket counts.
Q: Is a Self-Loading Concrete Mixer Suitable for Mountainous and Off-Road Construction?
A: Yes, certain self-loading concrete mixers are specifically configured for demanding construction environments and can feature 4WD, heavy-duty engineering tires, and high ground clearance. These features improve mobility on mountainous roads, muddy sites, rural roads, mining areas, and other unpaved terrain. However, off-road capability varies between models, and extremely muddy or steep conditions may require additional considerations. When choosing a mixer for difficult terrain, evaluate the maximum slope, road width, ground conditions, rainfall, and expected load. A 4WD self-loading concrete mixer with suitable off-road tires can provide better traction and mobility in challenging applications.
Q: What Are the Key Safety Considerations for Operating a Self-Loading Concrete Mixer on Slopes?
A: Slope operation requires careful attention because the concrete inside the mixing drum moves during travel, creating a dynamic load and potentially shifting the machine's center of gravity. The climbing ability of an empty self-loading concrete mixer should therefore not be considered sufficient evidence of safe full-load operation. On steep terrain, avoid crossing slopes sideways, making sudden turns, or descending at excessive speeds, and keep the load within the recommended range. For mountainous projects, providing the maximum longitudinal and lateral gradients in advance helps determine the appropriate mixer based on operating weight, drivetrain, braking system, tires, and overall stability.
