The LT950EV electric loader features a 350kWh battery for 8-12h operation and quick charging. Its dual high-power motors, smart control, and independent cooling ensure efficiency and reliability, plus an upgraded axle and 7-inch display boost durability and user-friendliness.
Modell :
LT950EVLadekapazität :
5000KGBetriebsgewicht :
18500KGEimerkapazität :
2.5-4.5 m³ODM/OEM :
Support

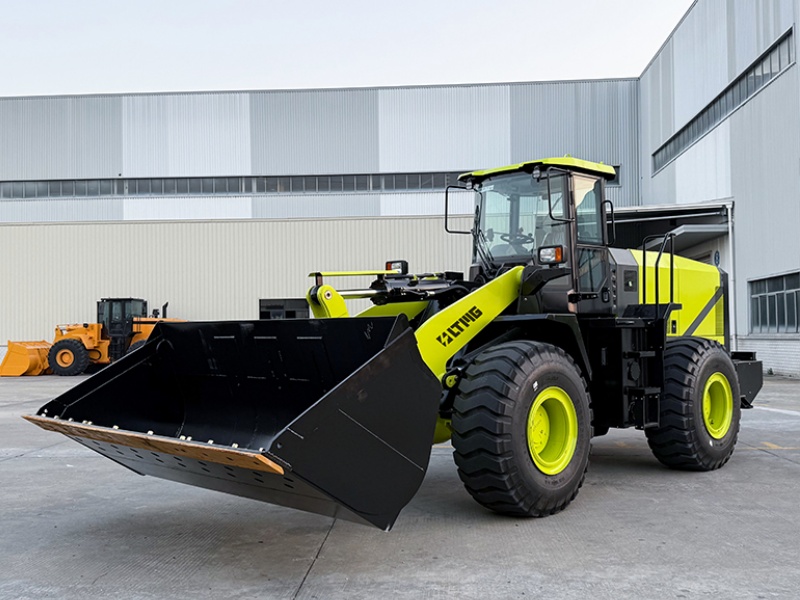

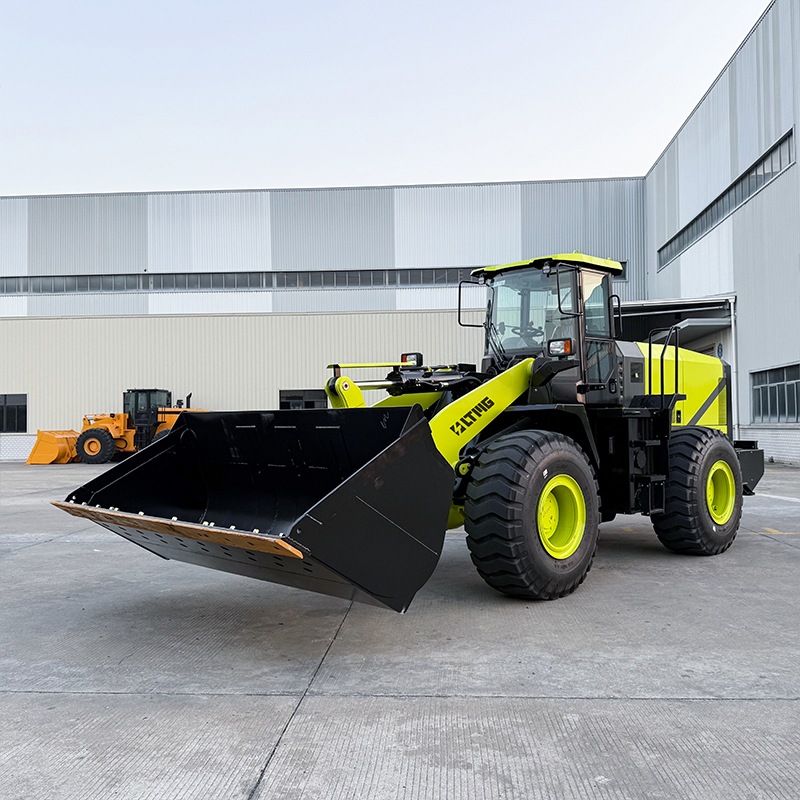

LT950EV 5 Ton Electric Loader
* Enhanced Efficiency: Features a high-capacity battery for 8-12 hours of operation and quick charging to boost productivity.
* Smart Performance: Centralized control ensures precise, responsive operations for energy-efficient performance.
* Powerful Drive: Dual high-power motors provide strong torque and high output with lifetime maintenance-free benefits.
* Long-lasting Runtime: Industry-leading 350kWh battery with advanced control strategies for extended endurance.

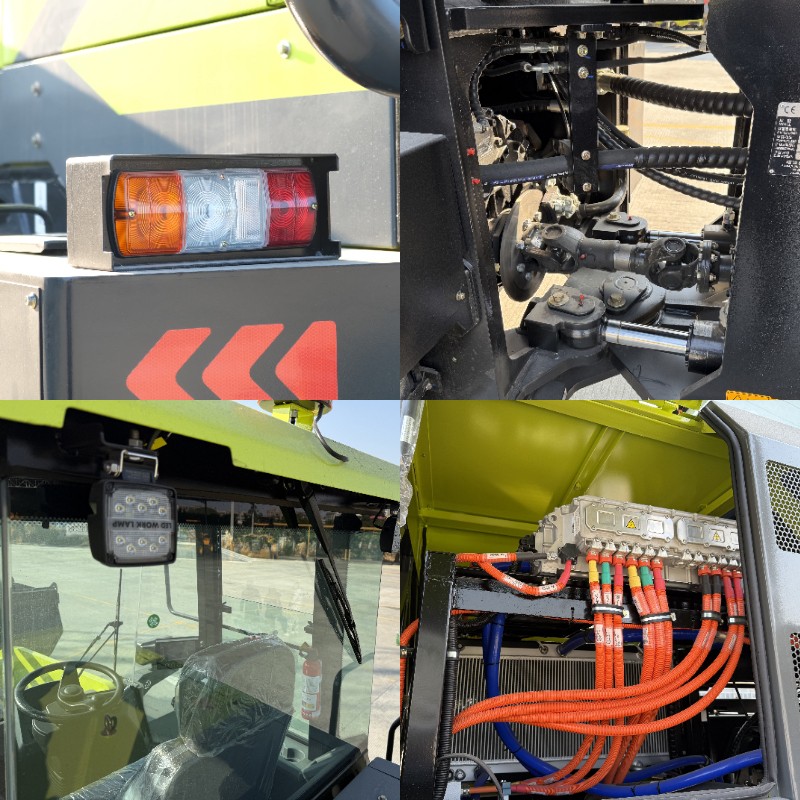

* Advanced Cooling: Independent cooling system maintains optimal temperatures for reduced maintenance.
* User-friendly Interface: A 7-inch display shows vital info like motor response and system status for an enhanced driving experience.
* Durable Axle: Upgraded heavy-duty axle offers high load capacity, durability, and reliability.
Smart Control 5 Ton New Electric Loader specifications
|
Performance Parameters |
Values |
|
Total Cycle Time |
≤10s |
|
Boom Lift Time |
≤5.1s |
|
Unloading Height |
3,120/3,420 mm |
|
Unloading Distance |
1360 mm |
|
Maximum Pin Height |
≤4,435 mm |
|
Excavation Depth |
45 mm |
|
Maximum Bucket Angle on Ground |
45° |
|
Maximum Bucket Angle in Transport Position |
55° |
|
Maximum Bucket Angle at Maximum Lift |
53° |
|
Traction Force |
≥165 kN |
|
Gradeability |
30° |
|
Driving Speed (Forward) |
15/40 km/h |
|
Driving Speed (Reverse) |
15/40 km/h |
|
Rated Load |
5,800 kg |
|
Bucket Capacity |
2.5-4.5 m³ |
|
Digging Force |
≥170 kN |
|
Operating Weight |
18,500 kg |
|
Travel Motor Power |
120/240 kW |
|
Pump Motor Power |
80/160 kW |
|
Battery Capacity |
282/350 kWh |
|
Working Time |
8-12 h |
|
Ground Clearance |
408 mm |
|
Cab Height |
3,500 mm |
|
Wheelbase |
2,290 mm |
|
Bucket Width |
2,990 mm |
|
Overall Length (with attachments) |
8,800 mm |
|
Turning Angle, either side |
35° |
|
Departure Angle |
30° |
|
Minimum Turning Radius at Transport Position |
7,340 mm |
|
Turning Radius, outside of tires |
6,780 mm |
With technological innovation, our product configuration and parameters will continue to change without notice.
If there is any doubt, the specific confirmation of our international trade sales shall prevail.
Professional Delivery Experience of 5-Ton Electric Loaders
With extensive experience in electric loader transport, LTMG utilizes expert-level container loading techniques. We guarantee your equipment arrives safely and in perfect condition, while our space optimization saves you money on sea freight.

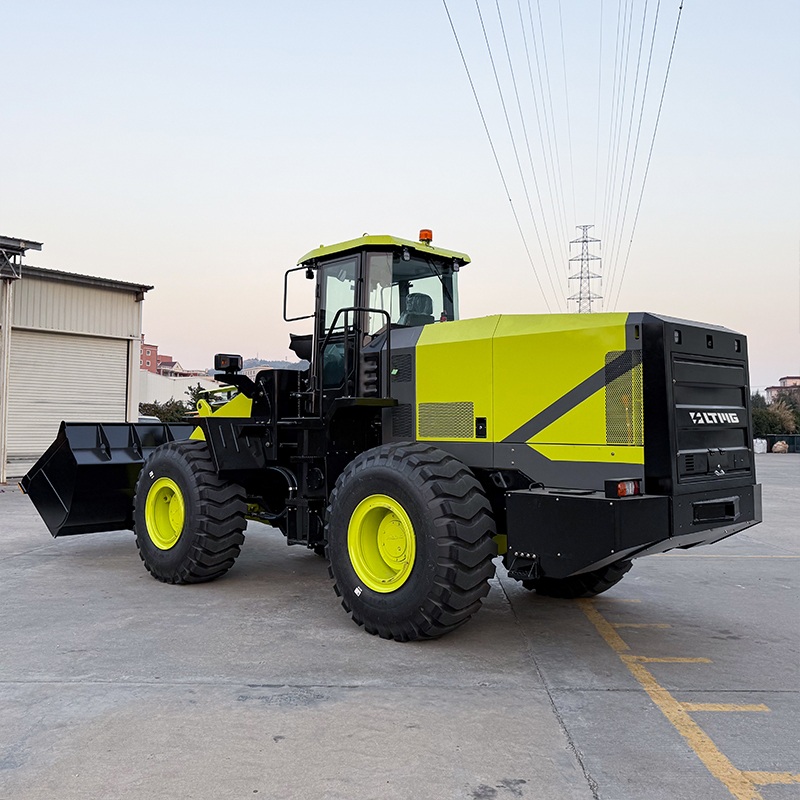

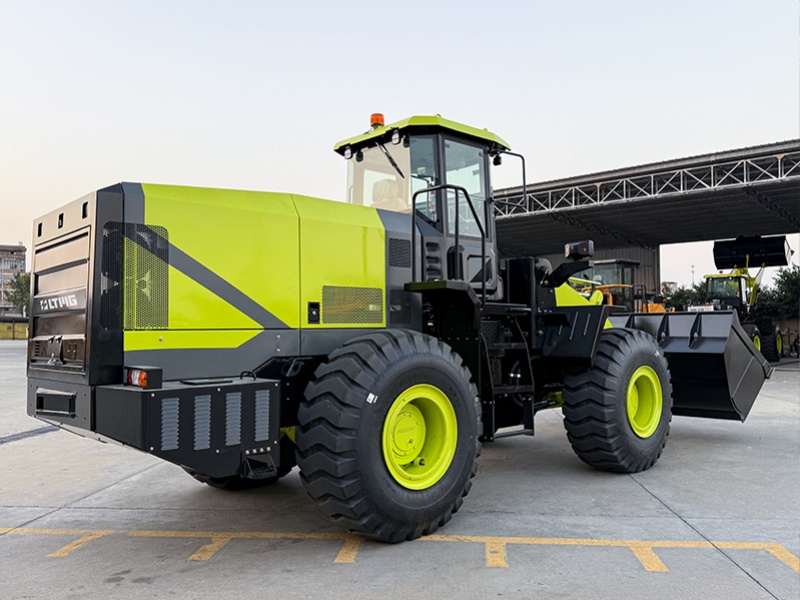

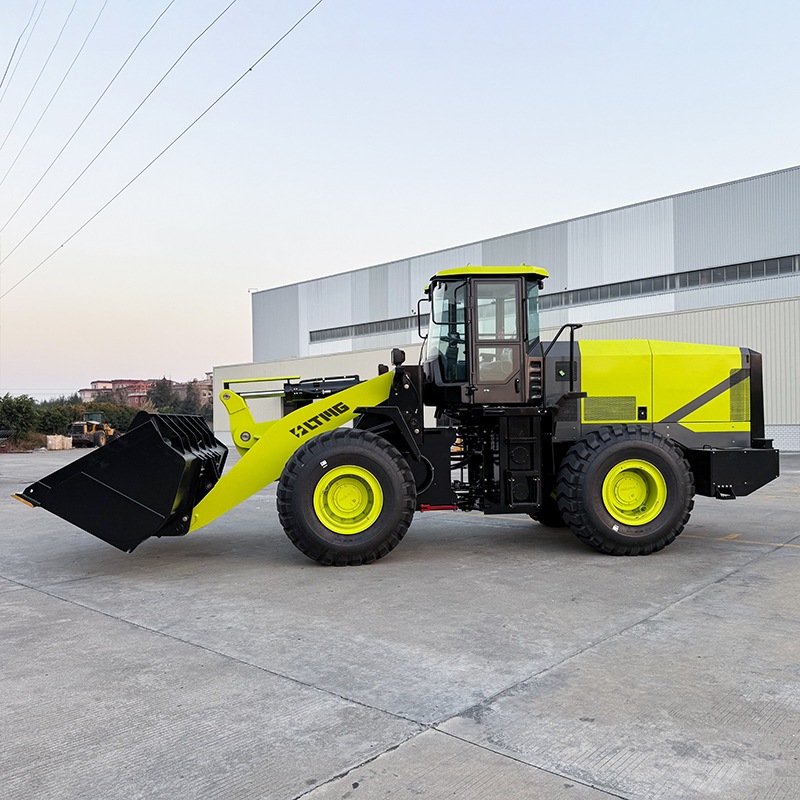

LT950EV Electric Loader Showcase
FAQ
Q: Under what working intensity is the 8-12 hour runtime achieved?
A: The runtime of 8-12 hours is achieved under regular working intensity, suitable for most common loading conditions and meeting the needs of long-term continuous operations.
Q: How does the multi-functional intelligent cooling system regulate the temperature of various components?
A:The multi-functional intelligent cooling system adopts an independent control method to regulate the heat dissipation of the battery, motor, hydraulic system, etc., respectively, and accurately keep each component at the optimal working temperature.
Q: How Can I Trust Your Company?
A: With 20 years of experience, we can offer you the right advice and the most economical price. All equipment is CE, ISO certified through third-party evaluation.
Q: Are Your Prices Competitive?
A: We only supply good-quality machines. We will surely offer you the best ex-factory price on the basis of high quality products and services.
